Overview: Infrastructure as the Primary Deployment Cost Driver
When evaluating golf driving range automation, the robotic system is an important investment. Factors such as battery performance, durability, reliability, and operating efficiency all play a critical role in daily operations.
However, the total deployment cost of an automation project is not determined by the robot alone. Supporting infrastructure, including construction work, site modifications, and regulatory requirements, can significantly impact the overall investment, installation timeline, and project complexity.
For many traditional golf ball collection systems, automation requires major facility preparation before the robot can be deployed. This may include underground construction, structural modifications, drainage planning, and approval processes for outdoor facility changes.
The Wayrobo WayPick 2 robotic golf ball picker is designed to simplify deployment through an infrastructure-light approach. By reducing dependence on permanent construction and supporting flexible system configurations, WayPick 2 enables golf facilities to implement automation with fewer site limitations.
Ball Handling Infrastructure: Subsurface Civil Works vs. Modular Surface Systems
A key consideration in golf driving range automation is how collected golf balls are unloaded, transported, and processed.
Common automated golf ball collection systems often rely on underground infrastructure, including concrete dumping pits, underground conveyors, or collection chambers. These systems require excavation below turf level, structural reinforcement, waterproofing, and drainage planning.
In addition to higher upfront construction costs, underground systems introduce additional mechanical components such as conveyors and lifting systems. These components increase installation complexity and may create additional maintenance requirements over the system’s lifetime.
Environmental factors can also affect underground infrastructure. Water accumulation, flooding, and debris can impact long-term reliability in outdoor golf course environments.

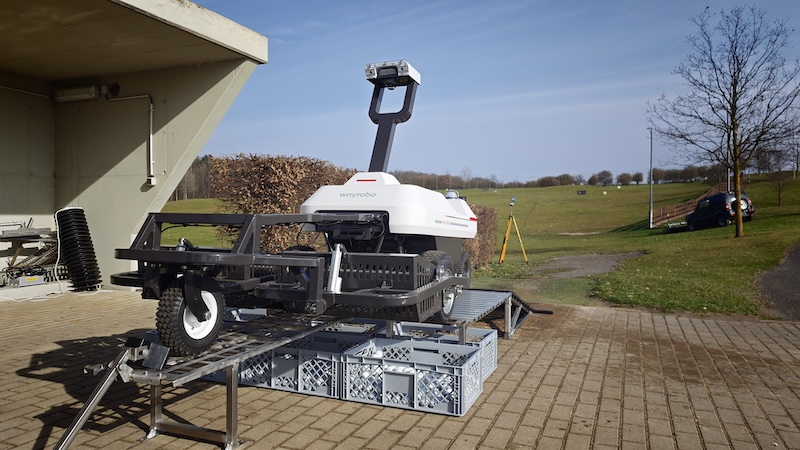

The WayPick 2 uses a modular above-ground golf ball unloading platform that can be installed directly on existing surfaces, including turf, asphalt, or concrete.It allows collected golf balls to be transferred to downstream processing systems without requiring excavation or permanent underground structures.
This design gives golf facilities greater flexibility in choosing their preferred ball handling workflow.
From Pickup to Play: Automation Workflow Compability
Modern golf facilities often already have automated equipment for different stages of golf ball management. However, the overall efficiency depends on how well these systems connect with each other. When a robotic golf ball picker integrates smoothly with downstream processes, it can further improve automation and reduce manual handling. If systems cannot work together effectively, manual intervention may still be required between different stages.
Because WayPick 2 uses an above-ground unloading platform, golf facilities can configure the entire ball-handling workflow—from collection and unloading to washing, transfer, and redistribution—according to their operational needs and existing infrastructure.
1. Manual Golf Ball Transfer Solution
For facilities seeking a simple and cost-effective workflow, collection baskets can be placed beneath the WayPick 2 unloading platform.
Staff can then transport collected golf balls to the existing golf ball washing and processing system, requiring minimal infrastructure changes.
2. Fully Automated Above-Ground Ball Processing System
For facilities seeking full automation, WayPick 2 can be integrated with third-party automation equipment to create a complete above-ground workflow:
- Automated golf ball unloading

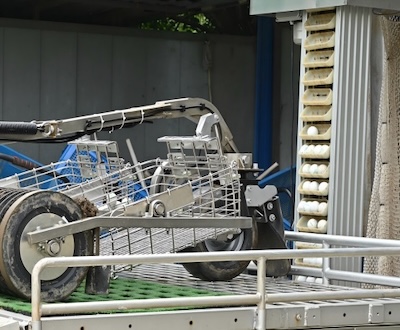

- Elevator-based ball transfer
- Conveyor transportation
- Golf ball washing and processing
- Delivery to the practice range dispenser system
This approach enables a complete automated golf ball management system without underground construction.
3. Integration with Existing Underground Systems
Golf facilities that already operate underground ball handling infrastructure can continue using their existing systems.
WayPick 2 can be configured to work alongside current infrastructure, allowing facilities to upgrade automation without major reconstruction.
This adaptability allows WayPick 2 to support different golf range layouts, investment plans, and operational requirements.
Space Efficiency: Drive-Through Stations vs. Compact Reverse Unloading
Space efficiency is a major challenge when automating a golf driving range. Especially when it comes to where the robot drops off collected balls and how it maneuvers.
Many traditional collectors can only drive forward. As a result, unloading stations must be designed as drive-through structures with separate entry and exit paths. After unloading, the robot must proceed forward and execute a wide turning radius to re-enter the operational field. This layout typically requires 40–50 m² of dedicated space, reducing the usable surface area available for revenue-generating hitting bays.
The WayPick 2 supports reverse-drive operation, allowing entry and exit through a single access point on the unloading platform. This eliminates the need for extended exit ramps and reduces the required operational footprint to approximately 5 m², saving valuable land and making better use of the facility.
Conclusion: It’s Not Just About the Robot, It’s About the Setup
Successful golf driving range automation is not only about robotic performance. The ability to integrate smoothly with existing facility conditions is equally important.
The WayPick 2 robotic golf ball picker is designed to provide a flexible automation solution for modern golf facilities. Its modular above-ground architecture supports multiple ball handling methods, reduces infrastructure limitations, and adapts to different golf range environments，operational workflows and management models.
Instead of requiring facilities to redesign their infrastructure around a fixed automation system, WayPick 2 enables practical, scalable, and efficient automation deployment.
